Geocell

It has a honeycomb structure, high strength, good water permeability, corrosion resistance and other advantages.

Email : taiwei@cngeosynthetics.com

WhatsApp：+86 13053856906

Category:

Geocell

Technical indicators

PHYSICAL PROPERTIES	Test Method	Unit	TG330	P TG356	anel Grade TG445	s TG660 T	G712
Weld spacing		mm	330	356	445	660	712
Cell Depth		mm		75	125,150	,200,250,300
Cell Width (W)±3%		mm	224	259	320	488	508
Cell Length (L)±3%		mm	210	224	287	436	475
Nominal panel width		m	2.4	2.5	2.5	2.4	2.5
Nominal panel length		m	6.1	6.5	8.3	12.6	13.7
Polymer density	ASTMD1505	g/cm³			0.935-0.965
Environmental Stress Crack Resistance	ASTMD 1693	Hours			>5000
Carbon Black content	ASTMD 1603	%			min.2
Nominal sheet thickness(post texturing)	ASTMD5199	mm			min.1.2
Material			Compound of polyethylene and additives
Texture				Multiple rhomboidal indentations
Perforations		<10mm diameter holes,horizontal rows<12%cell wall surface area
Colour					Black
MECHANICAL PROPERTIES	Cell depth	mm	75	100	125	150	200
Seam Peel Strength±5%	EN ISO 13426-1	N	915	1220	1525	1830	2440
DURABILITY PROPERTIES
Weathering (UV Exposure)	EN 12224	Days			30
Combined ageing (Oxidation,temperature &moisture)	EN ISO 13438	Service Life			100 years
STOCKED GRADES*			TG356	TG356	TG356	TG445 T	G445
Nominal Panel size		m		2.5x6.5		2.5×8.3
Cell depth		mm	100	150	200	100	150
Panel Weight		kg	26.8	40.2	53.7	27.1	40.7
Panels per pallet			20	14	10	20	14
Gross pallet weight		kg	556	583	557	562	590

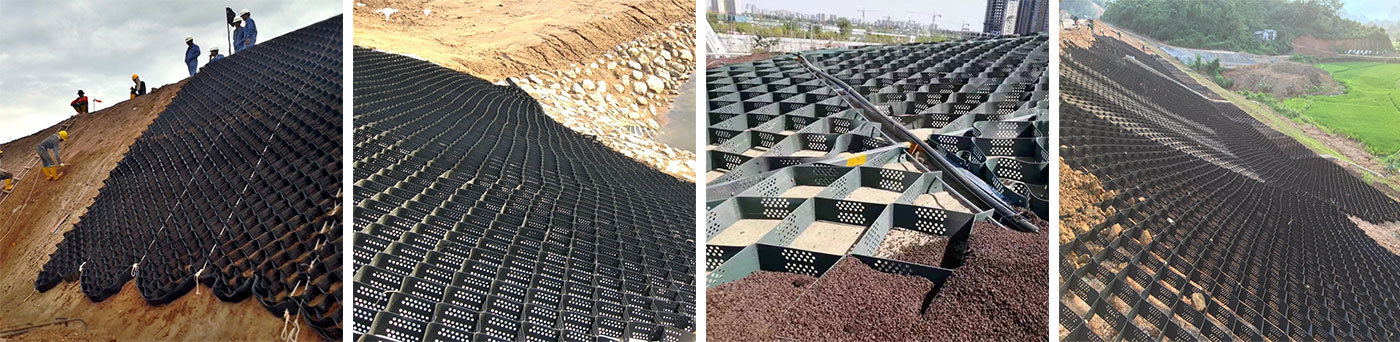

Application

1. Highway/railway subgrade reinforcement: soft soil foundation treatment to prevent subgrade settlement and extend the service life of the road.

2. Slope protection and greening: fix slope soil and combine with vegetation planting to prevent landslides and debris flows.

3. Riverbank/coastal engineering: resist water erosion, protect dams, and reduce soil erosion.

4. Parking lot/airport runway base: disperse the load of vehicles or aircraft to avoid ground cracking.

5. Mine restoration: Reinforce the surface of tailings dumps and dumpsites to promote ecological recovery.

6. Garden landscape engineering: used for slope greening and flower bed slope protection, taking into account both functionality and aesthetics.

Features

1. High strength and toughness: Made of high-quality materials that are anti-aging and anti-UV, with high tensile strength and not easily deformed under long-term load.

2. Three-dimensional structure: The honeycomb grid can be filled with sand, gravel, soil and other materials to significantly increase the bearing capacity of the foundation.

3. Water permeable and breathable: The mesh gaps allow water to penetrate freely, reducing the problem of soil softening caused by water accumulation.

4. Convenient construction: It can be folded for transportation and can be filled directly after unfolding on site, saving manpower and time costs.

5. Corrosion resistance and environmental protection: Resistant to acid, alkali and salt corrosion, suitable for harsh environments; some materials are recyclable and meet environmental protection requirements.

Packaging and shipping

We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
