Product Introduction
Composite geogrid is an engineering material made of high-strength polymers (such as polypropylene, polyethylene, polyester) stretched or woven to form a mesh structure, and compounded with geotextiles, membranes and other materials. Its core structure is a combination of grid layer and functional layer (such as filtering and isolation layer), which has both reinforcement and protection functions.
Features
1. High strength: Biaxially stretched grating has high tensile strength and uniaxially stretched longitudinal strength.
2. Durability: After adding anti-UV agent, the outdoor life span exceeds 50 years; acid and alkali resistance (pH 3-11), salt spray resistance.
3. Friction coefficient: The friction coefficient with the soil is 0.8-1.2, reducing inter-layer slippage.
4. Construction convenience: Coiled material design (width 2-6m), can be cut on site, and spliced using special fasteners or welding.
| Type | Process characteristics | Typical application scenarios | Technical parameter examples |
| Two-way stretch composite type | Stretching in both vertical and horizontal directions, high node strength | Soft foundation reinforcement, roadbed reinforcement | Tensile strength: customized |
| Unidirectional tensile composite type | High longitudinal strength, moderate transverse extension | Steep slope protection, retaining wall | Longitudinal tensile strength: customized |
| Warp knitting composite type | Polyester weaving + geotextile composite | River slope protection, ecological restoration | Peel strength: customized |
| Welding composite type | HDPE mesh + anti-seepage membrane welding | Landfill, water conservancy and anti-seepage | Permeability coefficient: customized |

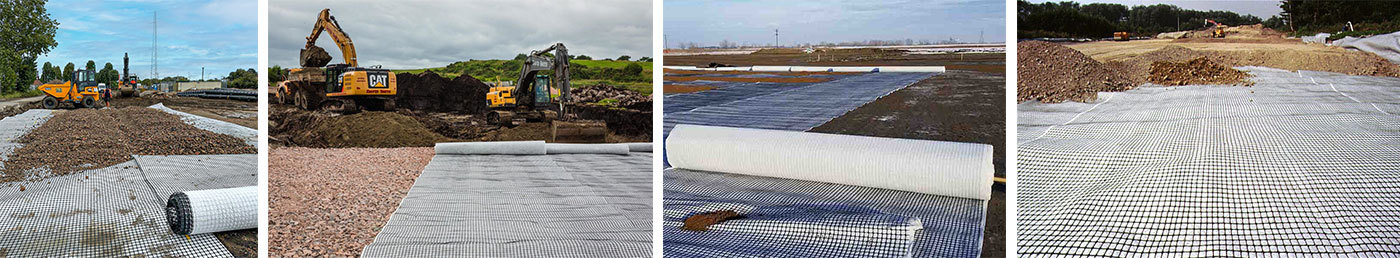

Application
1. Highway/railway subgrade reinforcement: disperse load and reduce differential settlement (settlement reduction of 30%-50%).
2. Slope protection and ecological restoration design
3. Soft soil foundation treatment
4. Isolation of water conservation projects
5. Airport runway and yard reinforcement
