PP Short Fiber Nonwoven Geotextile

Polypropylene short fiber non-woven geotextile is a non-woven geosynthetic material made from polypropylene (PP) short fiber through opening, carding

Email : taiwei@cngeosynthetics.com

WhatsApp：+86 13053856906

Category:

PP Short Fiber Nonwoven Geotextile

Product specifications

Weight: 100-800g/㎡ (customizable according to customer needs)

Size: Width 1-6m/Length (customizable according to customer needs)

Color: white, black, green, etc. (customizable according to customer needs)

Packaging: normal neutral packaging (customizable according to customer needs)

Technical indicators

Properties	Test Method	Unit	PP100	PP150	PP200	PP250	PP300	PP350	PP400	PP500	PP600	PP700	PP800
Tensile Strength (MD/TD)	ASTM D4595	kN/m	6	9.5	13	17	19	23	26	34	38	42	48
Tensile Elongation (MD/TD)	ASTM D4595	%	50	50	60	60	60	60	60	60	60	60	60
Grab Tensile Strength (MD/TD)	ASTM D4632	N	450	550	730	1000	1100	1400	1700	2000	2500	2700	3000
Grab Elongation (MD/TD)	ASTM D4632	%	50	50	50	60	60	60	60	60	60	70	70
Trapezoidal Tear Strength (MD/TD)	ASTM D4533	N	220	270	330	430	450	540	610	770	810	900	1000
CBR Burst Strength	ASTM D6241	N	1250	1800	2300	2800	3200	3600	4500	5600	6400	7500	8000
Pore Size O90	ASTM D4751	µm	110	110	110	100	100	90	80	70	70	70	70
Water Flow Q100	ASTM D4491	L/m2/s	250	235	210	190	170	160	125	100	80	60	60
U.V. Resistance	ASTM D4355	%@500h	70	70	70	70	70	70	70	70	70	70	70
Thickness	ASTM D5199	mm	1	1.2	1.6	1.9	2.2	2.5	2.8	3.4	4.2	4.6	5
Weight	ASTM D5261	g/m2	100	150	200	250	300	350	400	500	600	700	800
Roll Width	-	m	6	6	6	6	6	6	6	6	6	6	6
Roll Length	-	m	250	250	150	150	100	100	100	75	50	50	50

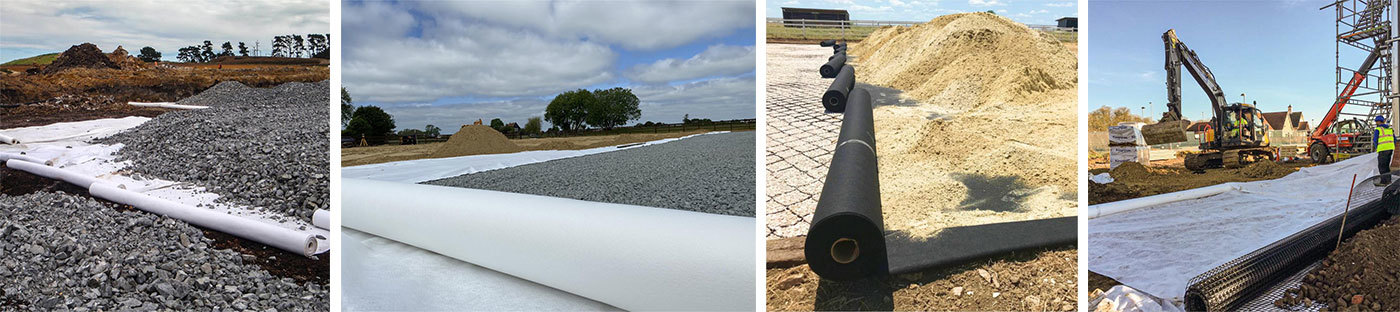

Application

1.Water conservancy projects: PP short fiber geotextile can be used for anti-seepage, anti-leakage, soil conservation and anti-scouring in reservoirs, rivers, dams and other projects.

2.Road engineering: PP short fiber geotextile can be used to reinforce and stabilize roadbeds, reduce the occurrence of road collapse and cracks, and increase the service life of roads.

3.Yard and wharf projects: PP short fiber geotextile can be used for soil conservation, anti-leakage, load-bearing capacity improvement, etc. to increase the efficiency and safety of yard and wharf projects.

4.Environmental engineering: PP short fiber geotextile can be used for anti-penetration and pollution control on the bottom and sides of landfills, waste disposal sites, etc.

5.Agricultural engineering: PP short fiber geotextile can be used for soil moisture retention and windproof insulation to promote crop growth and increase yields.

Features

1. Chemical corrosion resistance
Polypropylene material has excellent acid and alkali resistance and salt and alkali resistance, and is suitable for corrosive environments such as landfills and chemical parks.

2. Efficient water permeability and reverse filtration function
It has high porosity, high vertical permeability coefficient, rapid drainage and effective interception of soil particles to prevent soil erosion.

3. Environmentally friendly
It is recyclable, supports biodegradability, and is in line with the green engineering trend.

4.UV resistance
With the addition of anti-UV additives, it can resist more than 80% of sunlight exposure.

5.Construction flexibility
Soft texture, easy to cut, sew or overlap, adapting to complex terrain.

Packaging and shipping

We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
