PET Geogrid


High Strength PET Geogrid is made from high strength polyester yarn and coated with a flame retardant, anti-static coating.

Email : taiwei@cngeosynthetics.com

WhatsApp:+86 13053856906

Category:

Geogrid

keywords :

Geogrid

Product Introduction

High Strength PET Geogrid is made from high strength polyester yarn and coated with a flame retardant, anti-static coating. Tensile strengths range from 20KN/m to 1200KN/m. PET geogrid has a wide range of product lines with excellent properties such as high strength, low elongation, corrosion resistance and aging resistance.

Product specifications

Tensile Strength: 20-120Kn (customizable according to customer needs)

Size: Width 1-5m/Length (customizable according to customer needs)

Packaging: normal neutral packaging (customizable according to customer needs)

Technical indicators

Spec PET 50-50 PET 100-100 PET 200-200 PET 300-300 PET 400-400 PET 600-600 PET 800-800 PET 1000-1000 PET 1100-1100 PET 1200-1200
Item
Grid Size(m) 25.4x25.4   50.8*50.8   76.2*76.2
Mesh Size(mm) 20x20   40x40   50x50
Breaking Strength≥(kN/m) Warp direction 50 100 200 300 400 600 800 1000 1100 1200
Across Warp 50 100 200 300 400 600 800 1000 1100 1200
Elongation at break≤(%) 25
Resistance of the product’s surface<(Ω) 1.0x109
Flameless Quenching Time≤(s) After flame<3 after giow<10
Width(m) 1-6

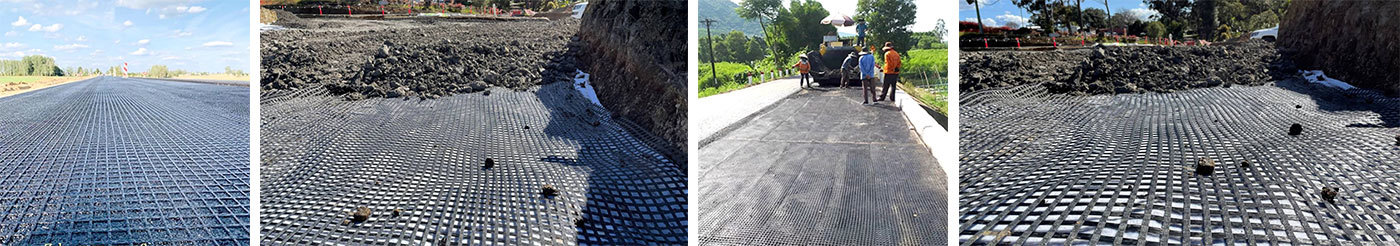

Application

1. Enhancement of roadbed structures in highways, railways, and airports: Strengthen the load-bearing capacity of roadbeds to mitigate surface cracking and subsidence.

2. Protection of dams: Improve soil stability to avert landslides and structural failures.

3. Reinforcement of retaining walls and abutments: Augment the stability of these structures to prevent deformation and potential collapse.

4. Treatment of soft soil foundations: Increase the load-bearing capacity of soft soil foundations while minimizing settlement.

5. Anti-seepage measures in landfills and tailings ponds: Utilize reinforcing materials in the anti-seepage layer to enhance its effectiveness.

Features

1. Exceptional strength: High-strength polyester fiber exhibits remarkable tensile strength, allowing for effective load distribution and improved soil stability.

2. Minimal elongation: The low elongation property effectively restricts soil deformation, thereby enhancing the integrity and stability of the engineering structure.

3. Resistance to corrosion: Polyester materials demonstrate excellent resistance to acids, alkalis, and chemical corrosion, making them suitable for a variety of challenging geological conditions.

4. Effective water permeability: The mesh design provides excellent water permeability, facilitating moisture removal from the soil and preventing water accumulation that could compromise the project.

5. Easy to install: The lightweight nature of the material allows for straightforward cutting and placement, resulting in high construction efficiency.

Packaging and shipping

We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
