Product Introduction
Glass fiber geogrid is a geotechnical material made of glass fiber material. It has the characteristics of high strength, lightness, chemical resistance and durability. It is suitable for roadbed reinforcement, wall reinforcement, slope surface and so on. Protection, soil and water conservation and other engineering fields.
Product specifications
Tensile Strength: 30-300Kn (customizable according to customer needs)
Size: Width 1-6m/Length (customizable according to customer needs)
Packaging: normal neutral packaging (customizable according to customer needs)
Technical indicators
| Glass fiber geogrid technical indicators GB/T 21825-2008 | ||||||||
| Specification | Mesh size /mm ≥ | Mesh number (mesh center distance/mm) | Breaking strength/(kN/m)≥ | Breaking elongation/%≥ | ||||
| warp direction | latitudinal direction | warp direction | latitudinal direction | warp direction | latitudinal direction | warp direction | latitudinal direction | |
| TW1×1（30*30） | 12.5 | 12.5 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 30 | 30 | 3 | 3 |
| TW1×1（50*50） | 12.5 | 12.5 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 50 | 50 | 3 | 3 |
| TW1×1（60*60） | 12.7 | 12.7 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 60 | 60 | 3 | 3 |
| TW1×1（80*80） | 25 | 25 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 80 | 80 | 3 | 3 |
| TW1×1（100*100） | 25.4 | 25.4 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 100 | 100 | 3 | 3 |
| TW1×1（120*120） | 25.7 | 25.7 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 120 | 120 | 3 | 3 |
| TW1×1（150*150） | 30 | 30 | 1±0.15 （25.4±3.8） | 1±0.15 （25.4±3.8） | 150 | 150 | 3 | 3 |
| TW2×2（50*50） | 9 | 9 | 2±0.15 （12.7±3.8） | 2±0.15 （12.7±3.8） | 50 | 50 | 3 | 3 |
| TW2×2（80*80） | 8 | 8 | 2±0.15 （12.7±3.8） | 2±0.15 （12.7±3.8） | 80 | 80 | 3 | 3 |
| TW2×2（100*100） | 8 | 8 | 2±0.15 （12.7±3.8） | 2±0.15 （12.7±3.8） | 100 | 100 | 3 | 3 |

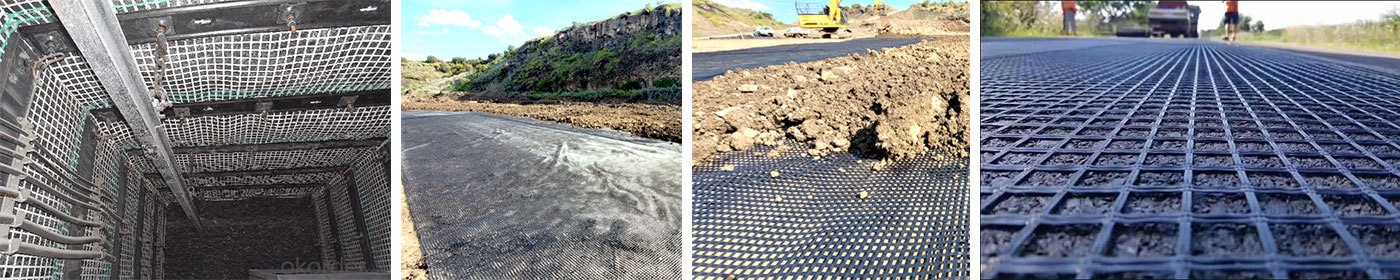

Application
1. Subgrade reinforcement: Fiberglass geogrids are applicable in roadbed construction for highways and railways, enhancing the stability and load-bearing capacity of the subgrade soil while preventing deformation and settlement.
2. Wall reinforcement: Glass fiber geogrids are utilized in wall reinforcement initiatives to improve the tensile strength of the wall and bolster its overall stability.
3. Slope protection: Fiberglass geogrids are employed in slope protection efforts to ensure slope stability and resistance to slipping, thereby mitigating soil erosion and the risk of slope failure.
4. Soil and Water Conservation: Fiberglass geogrids play a crucial role in soil and water conservation projects by inhibiting water flow and soil erosion, thus promoting soil stability.
Features
1. Exceptional strength: Fiberglass geogrids exhibit high tensile strength and rigidity, significantly enhancing the load-bearing capacity of soil.
2. Reduced weight: In comparison to conventional geotechnical reinforcement materials, fiberglass geogrids are lighter, facilitating easier transportation and installation.
3. Chemical resilience: The glass fiber geogrid undergoes specialized chemical treatment, enabling it to endure various environmental conditions and provide excellent corrosion resistance.
4. Remarkable durability: Glass fiber geogrids possess an extended service life, are minimally impacted by external environmental factors, and can retain their functional properties over an extended period.
Packaging and shipping
We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
