Polypropylene (PP) woven geotextile

Polypropylene Woven Geotextile is a synthetic geotextile material made from polypropylene (PP) fiber through a weaving process (interweaving of warp and weft yarns).

Email : taiwei@cngeosynthetics.com

WhatsApp：+86 13053856906

Category:

Woven geotextile

Technical indicators

				TW270	TW370	TW570	TW380 /（a）	TW380B	TW580/（a）	TW580B	TW380PPi	TW380PPi-B	TW580PPi	TW580PPi-B	TWH2Oi
Breaking strength	Meridian	KN/m	ISO 10319-2015	50	50	70	70	70	90	90	70	70	90	90	90
	zonal			50	65	70	60	50	80	85	80	90	105	105	90
Elongation at break	Meridian	%	ISO 10319-2015	10	10	10.5	10	10.5	10	10	13	13	14	14	13
	zonal			8	8	8	8	8	8	8	9	9	9	9	9
Breaking strength at elongation 2%	Meridian	KN/m	ISO 10319-2015	13	13	15	15	15	18	18	10.5	9.5	8	7	9
Breaking strength at elongation5%	Meridian	KN/m	ISO 10319-2015	30	30	38	38	38	45	45	30.6	25	22	25	28
Mass per unit		g/m2	GB/T13762-1992	225	250	310	280	260	375	380	340	345	420	435	430
Static breaking strength（CBR）		KN	GB/T 14800-2010	6	6.5	8	8	7	9	10	9	9	10	10	11
Equivalent aperture（O90）		mm	GB/T 14799-2005	0.42	0.45	0.48	0.48	0.33	0.45	0.4	0.48	0.48	0.47	0.48	0.45
permeability（Q50）		L/m2/s	GB/T 15789-2005	33	28	57	55	54	45	42	58	59	58	52	18
UV resistance（500 hour strong preservation rate）		%	ASTM D4355-2014	90	90	90	90	90	90	90	90	90	90	90	/

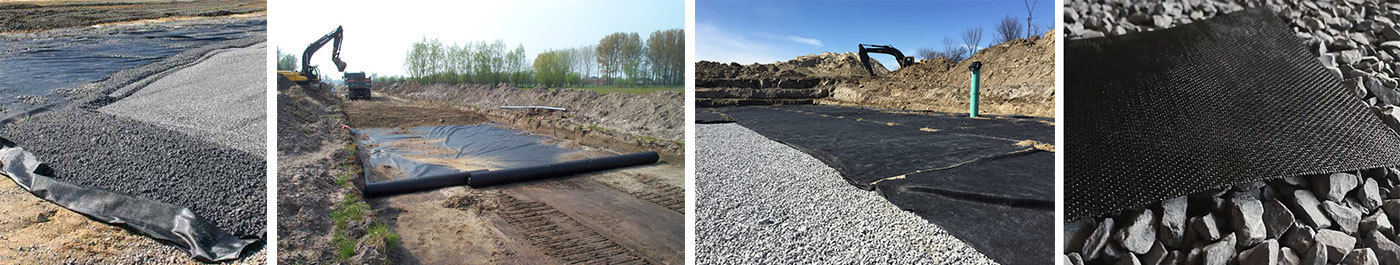

Application

1. Water conservancy and coastal engineering: saline-alkali land slope protection, used for dam protection in salinized areas, strong corrosion resistance.

2. Highway and railway projects: Soft foundation isolation, laid on soft soil foundation, separates soil layers and enhances bearing capacity. Pavement anti-reflective cracks.

3. Environmental protection and anti-seepage projects: chemical park anti-seepage, landfill isolation

4. Agriculture and gardening: drainage ditch filtering, salt field anti-seepage

5. Temporary projects: reinforcement of construction access roads

6. Mining and stockyards: slag stockyard isolation, tailings pond anti-seepage base

Features

1. High strength and tear resistance: high longitudinal tensile strength (depending on weight) and strong puncture resistance.

2. Chemical corrosion resistance: Polypropylene material has excellent acid and alkali resistance and is suitable for chemical pollution areas, saline-alkali land or seawater environments.

3. Water permeable and impermeable to soil: The pore structure allows water to penetrate freely, while effectively preventing the loss of soil particles and maintaining soil stability.

4. Lightweight and economical: low density, low transportation and construction costs, and overall cost performance better than traditional sand and gravel isolation layers.

5. Convenient construction: it can be cut, sewn or hot-melt connected to adapt to complex terrain and be laid quickly.

Packaging and shipping

We are willing to package and ship products according to the weight, specifications, materials, economic costs and customer requirements.
